ClamCleat Kit Wishbone Windsurf & Tubes 30 to 36mm

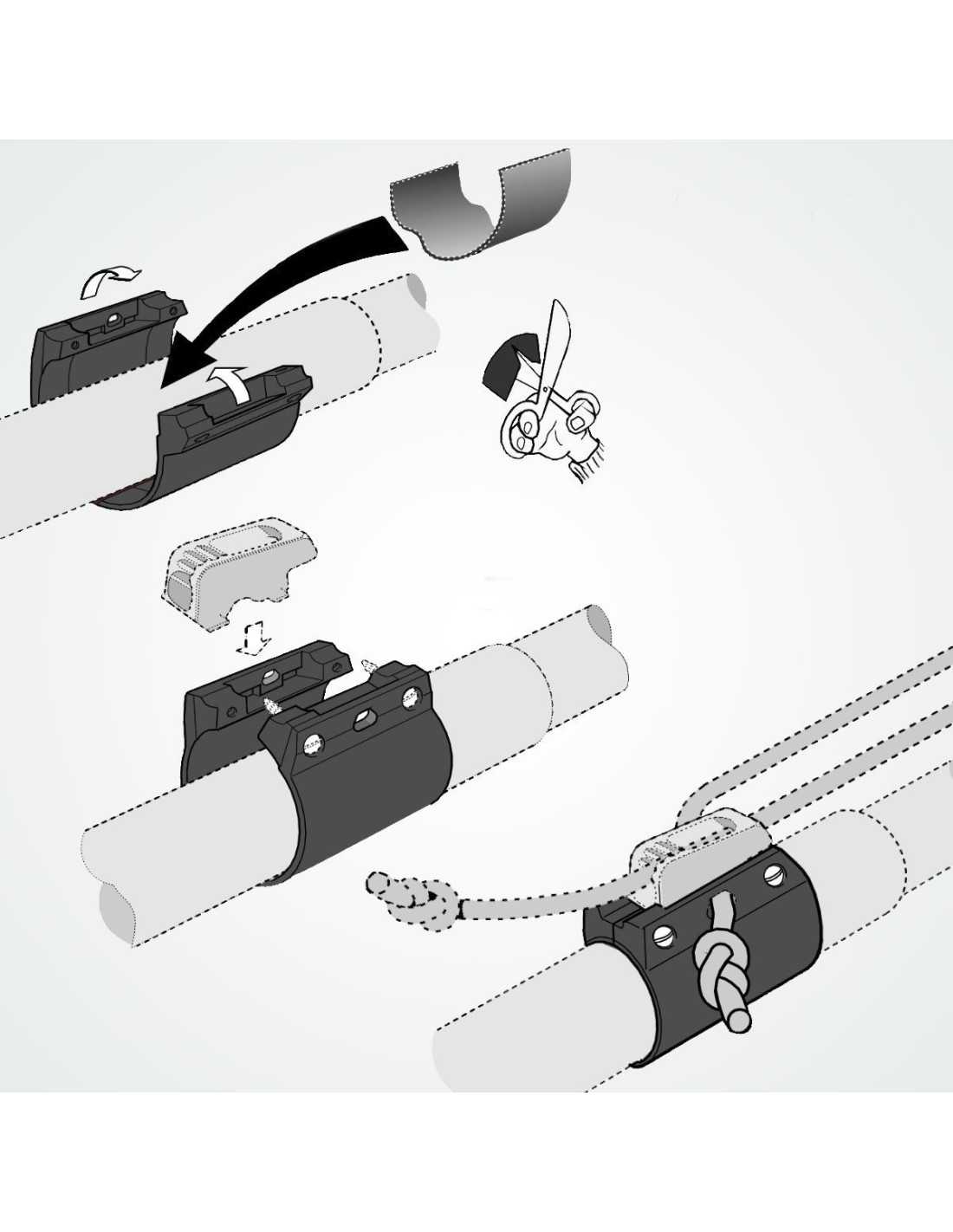

The Clamcleat® CL244R attaches to masts, tubes, and windsurfing booms. The high-strength alloy cleat inserts into the nylon clamp (collar), which is held in place by two screws. A rubber pad ensures a strong grip on bare metal poles and allows for some variation in tube diameter.

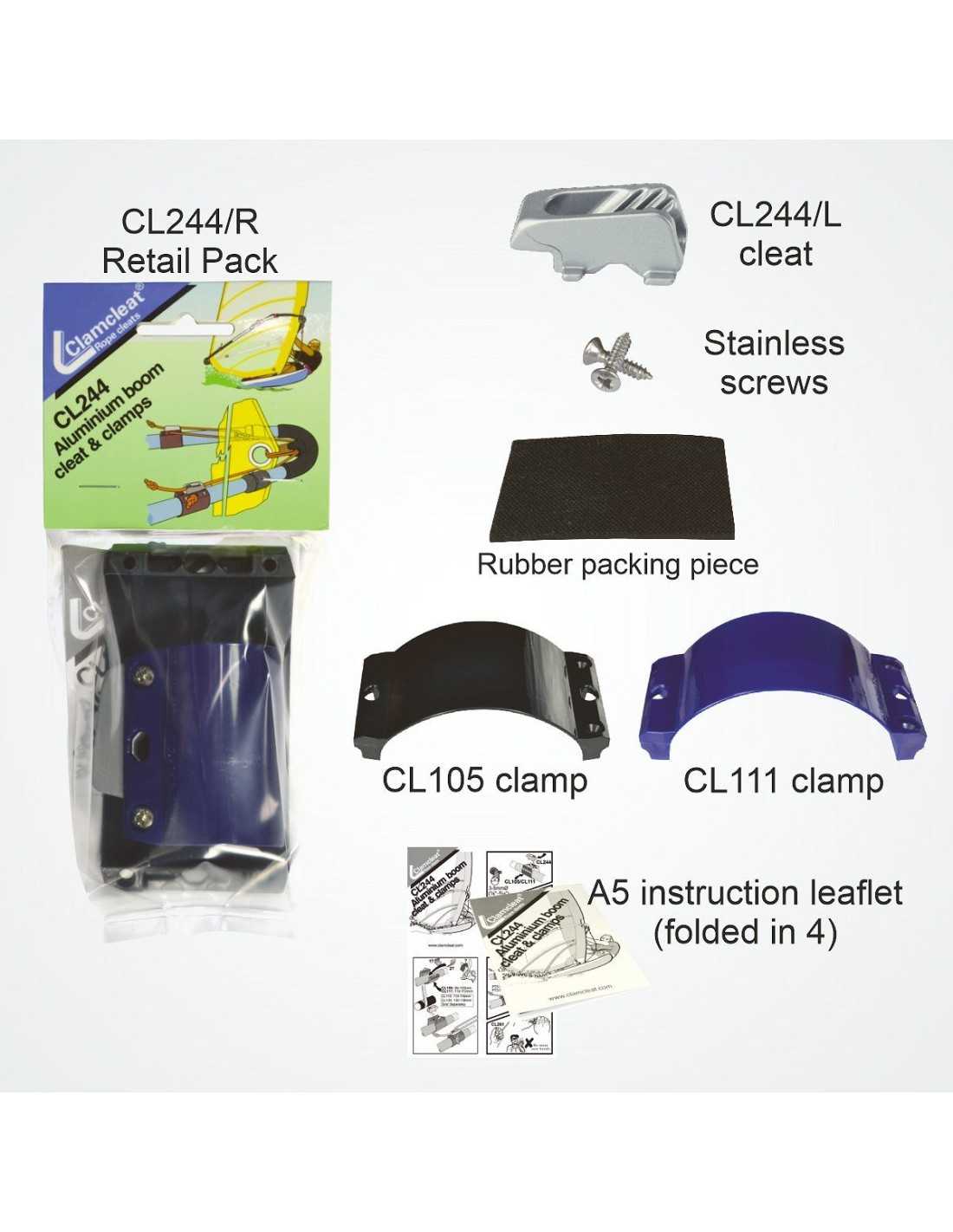

The CL244R pack

• ClamCleat CL244
• CL105 clamp for tubes with a diameter of 30 to 33mm, circumference of
• CL111 clamp for tubes with a diameter of 34 to 36mm, circumference of
• Two rubber pads to compensate for differences in diameter
• Two stainless steel screws, sheet metal screw type 4.2*20mm
• Remember that you need two per windsurfing boom.

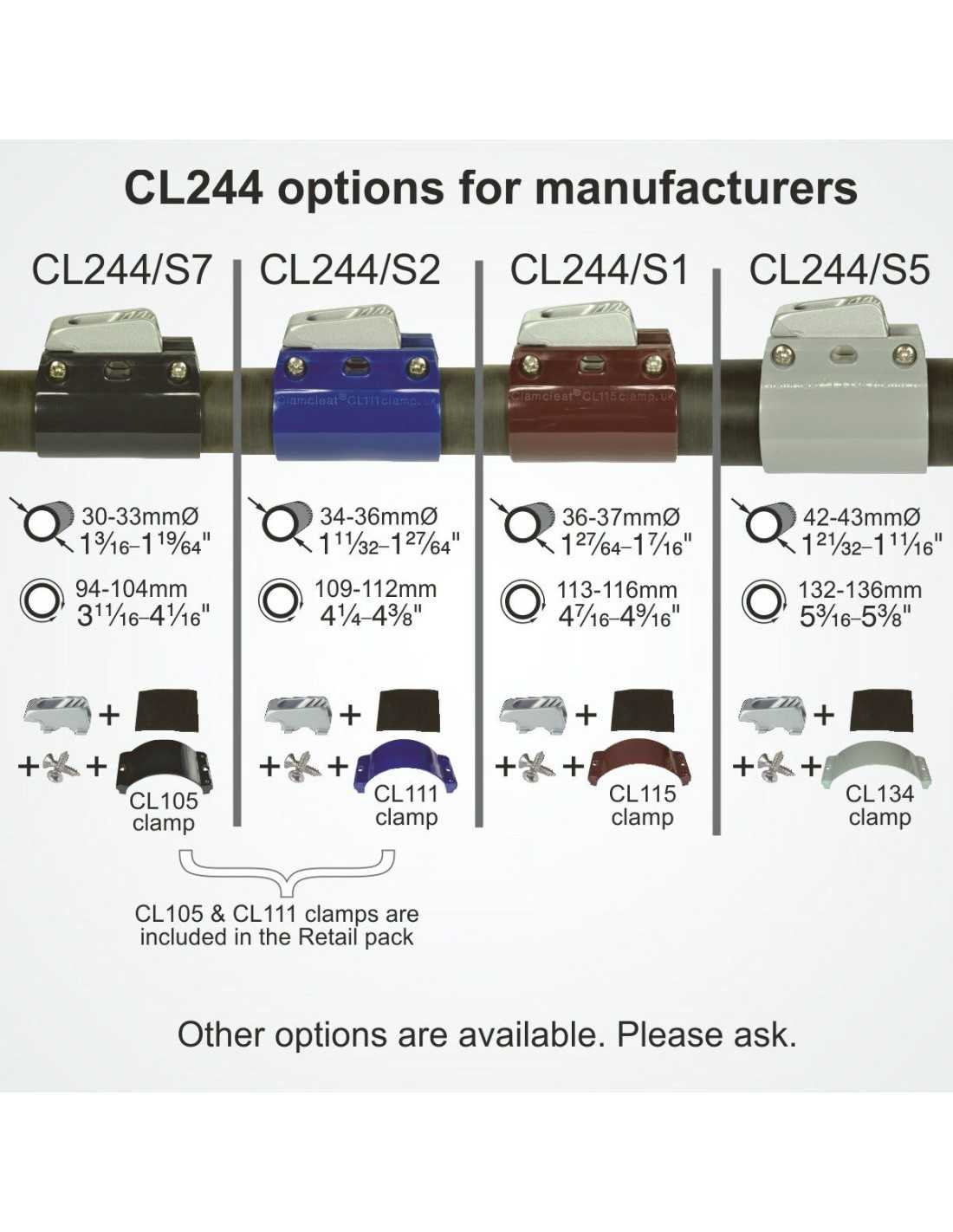

There are 5 types of clamps for tubes ranging from 24 to 43mm in diameter. Use rubber plates of different thicknesses to compensate for differences in diameter.

• CL077 clamp for tubes with a diameter of 24 to 27mm and a circumference of 75 to 84mm
• CL105 clamp for tubes with a diameter of 30 to 33mm and a circumference of 94 to 104mm

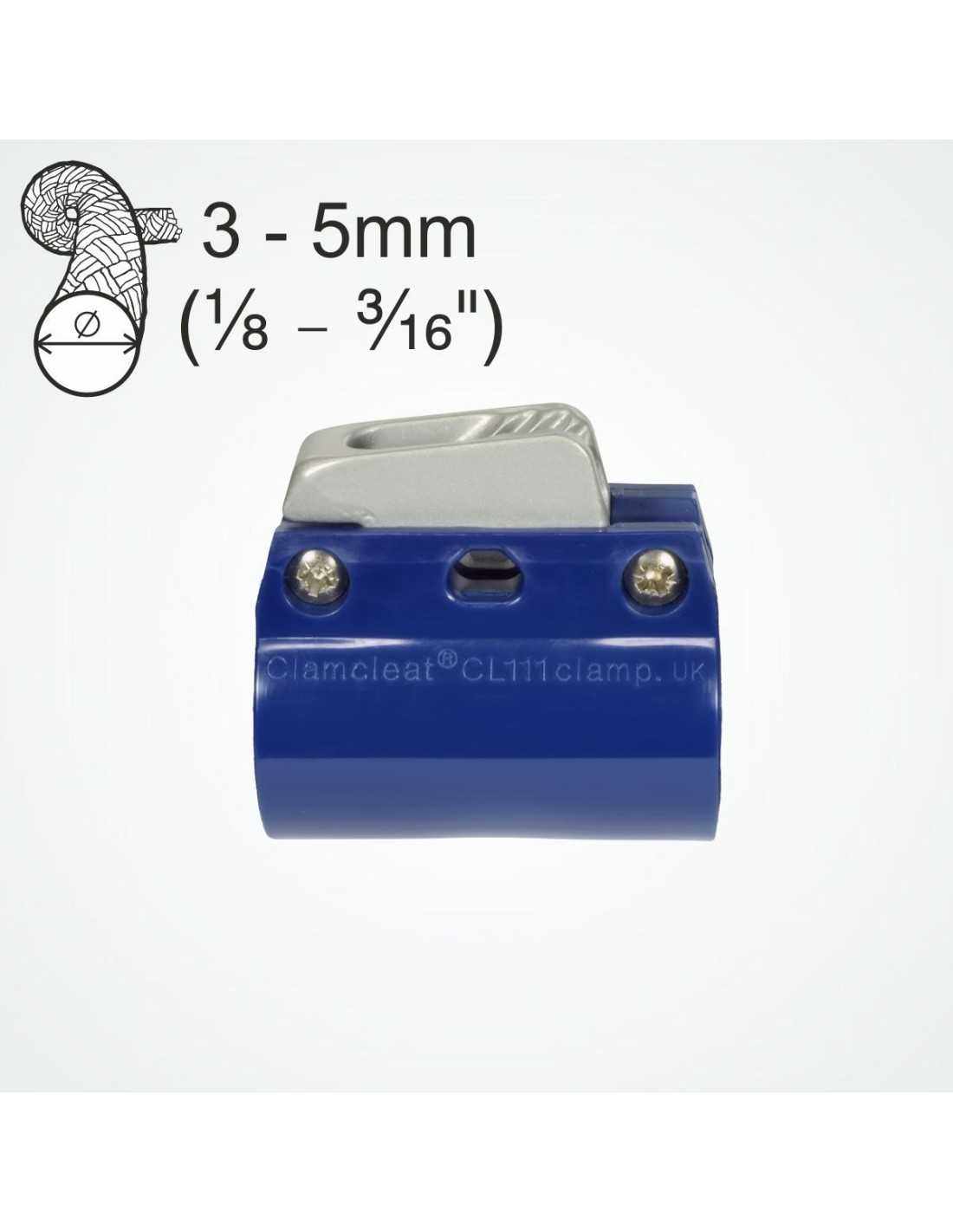

• CL111 clamp for tubes with a diameter of 34 to 36mm and a circumference of 109 to 112mm
• CL115 clamp for tubes with a diameter of 36 to 37mm and a circumference of 113 to 116 mm
• CL134 clamp for tubes with a diameter of 42 to 43mm and a circumference of 132 to 136 mm
