Manille Torse 5mm Harken

Harken Shackle Twist Forged 5mm

HK2105
In Stock! : 10 Items
CHF10.21 Tax included

Harken Shackle Twist 5mm

The stainless steel shackles we use on Harken® blocks are available separately. Harken forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. The breaking strengths shown are derived from weights supported by 80% of the length of the shackle pin, similar to the length spanned by an appropriate block's headpost.

Twist shackles are forged with a 90-degree twist so the two attachment points can be perpendicular without torquing

Reference

HK2105

HK2112

HK2119

HK2125

Shackle pin Ø (mm)

5mm

6mm

8mm

10mm

Shackle pin Ø (in)

3/16in

1/4in

5/16in

13/32in

Weight (g)

22g

32g

52g

140.5g

Weight (oz)

0.78oz

1.12oz

1.84oz

4.96oz

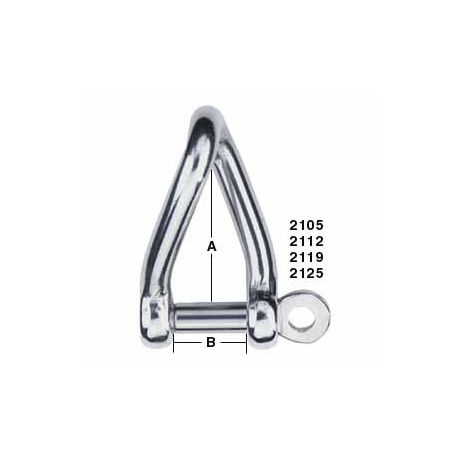

A (mm)

37mm

29mm

41mm

48mm

A (in)

1 7/16in

1 1/8in

1 5/8in

1 7/8in

B (mm)

10mm

12mm

17mm

19mm

B (in)

3/8in

1/2in

11/16in

3/4in

Maximum working load (kg)

540kg

750kg

1380kg

2210kg

Maximum working load (lb)

1190lb

1650lb

3040lb

4870lb

Breaking load (kg)

1080kg

1500kg

2760kg

4420kg

Breaking load (lb)

2380lb

3300lb

6080lb

9740lb

Material(s):
Stainless Steel A4
Useful Lenght (mm):
37
Width (mm):
10
Breaking Load (kg):
1080
Working Load (kg):
540
Shackle Pin Ø (mm):
5
Weight (gr):
2.5
Shape:
Twisted
Manufacturing Type:
Forged
